Phun Phonetic Tools

LING 210 - Will Styler

Hi, I’m Will

• I’m a Phonetician

• I have a problem

Your head isn’t transparent

We care what you’re doing in there

• How your tongue is moving

• What the various other articulators are doing

• How air is flowing

• How this turns into changes in sound

• How you’re listening to and interpreting speech

… but we can’t see any of it

• So how can we study and measure speech and speech perception?

Four main types of tool

• Acoustical Tools

• Articulatory Measurements

• Imaging Tools

• Tools for studying Perception

Acoustical Tools

Listening and the IPA

The International Phonetic Alphabet

A writing system used to transcribe what exactly is being said in any language of the world.

• The IPA is entertaining! - / ðə aj pi ej ɪz ɛɾ̃ɚtejnɪŋ/

• /rǂʛma/

• The IPA can be used to transcribe anything that’s being said

• Anything!

“Scatman” by Scatman John

Acoustic Analysis

• Anything important that you do inside your mouth will affect the acoustic signal

• Listeners use the acoustic signal to pick up on what we’re saying

• By studying the sound of speech, we can recover information about what you did

Waveforms

Spectrograms

Acoustic Analysis

• Pros:
  • Very cheap
  • Completely non-invasive
  • Captures sound in real time
  • Gives us all the detail which is available to listeners
• Cons:
  • Information is hard to processs
  • Doesn’t tell us directly about articulation
  • Many elements affecting the same signal

Sound tells us about the entire system

• Changes to tongue, voicing, lips, velum, all at once

• Many processes reflected in a single signal

• Sometimes, we want to measure what a single articulator is doing

Articulatory Tools

Electropalatography

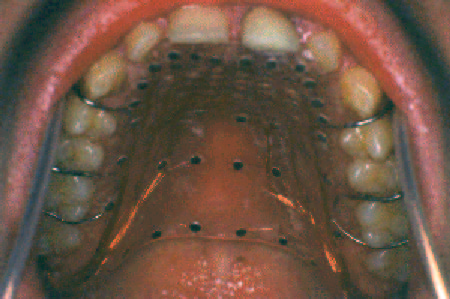

• Create a fake palate with many, many sensors

• Measure, electrically, when and where the tongue is making contact

Electropalatography

• Pros:
  • Tells us when and where the tongue is touching the roof of the mouth
  • Gives very detailed time information
  • Looks at the shape of the contact too
• Cons:
  • Very expensive
  • Palates must be created for each participant
  • Doesn’t capture many speech sounds

Oral/Nasal Airflow

• “How much air is coming out of the mouth and/or nose right now?”

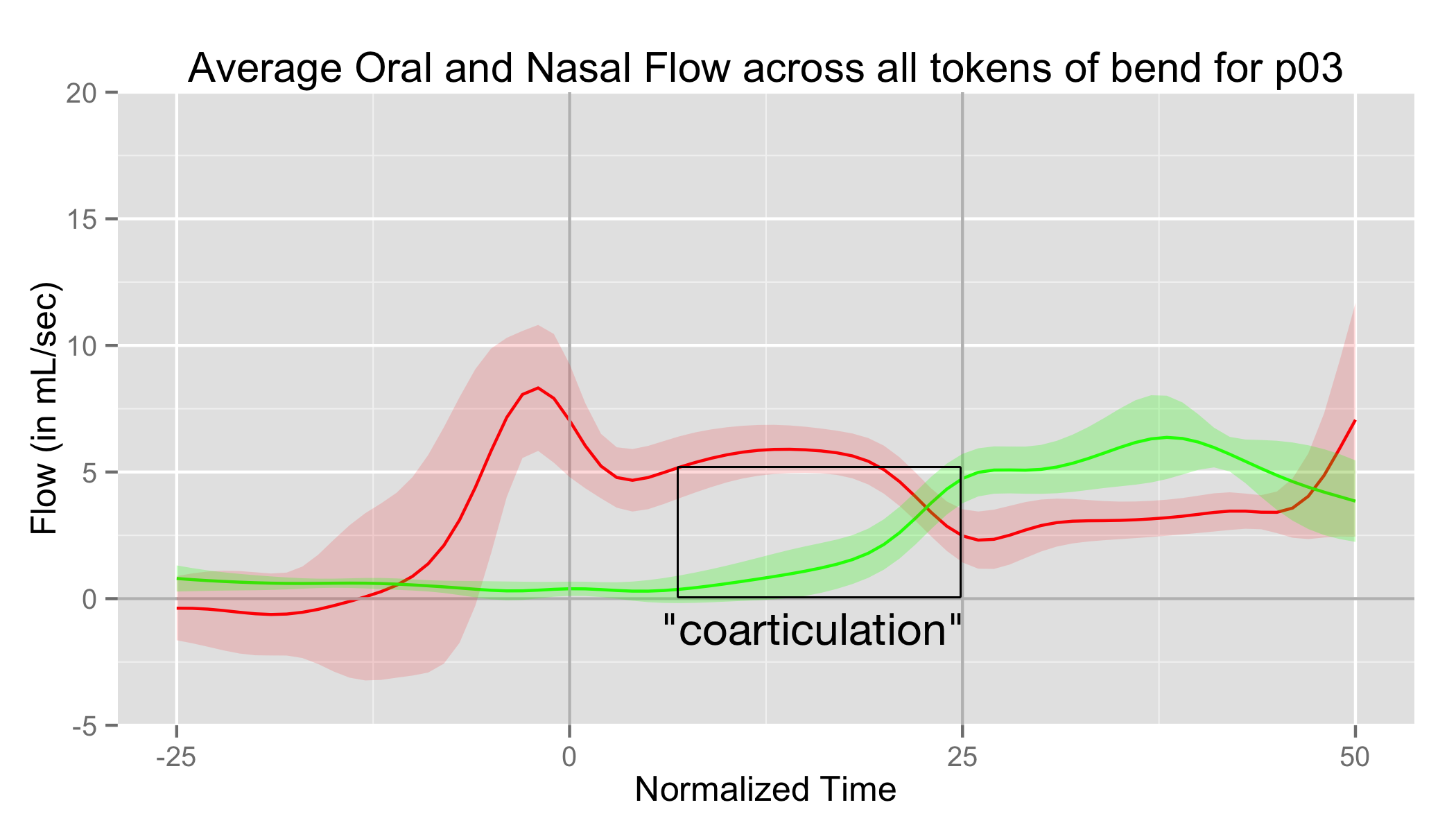

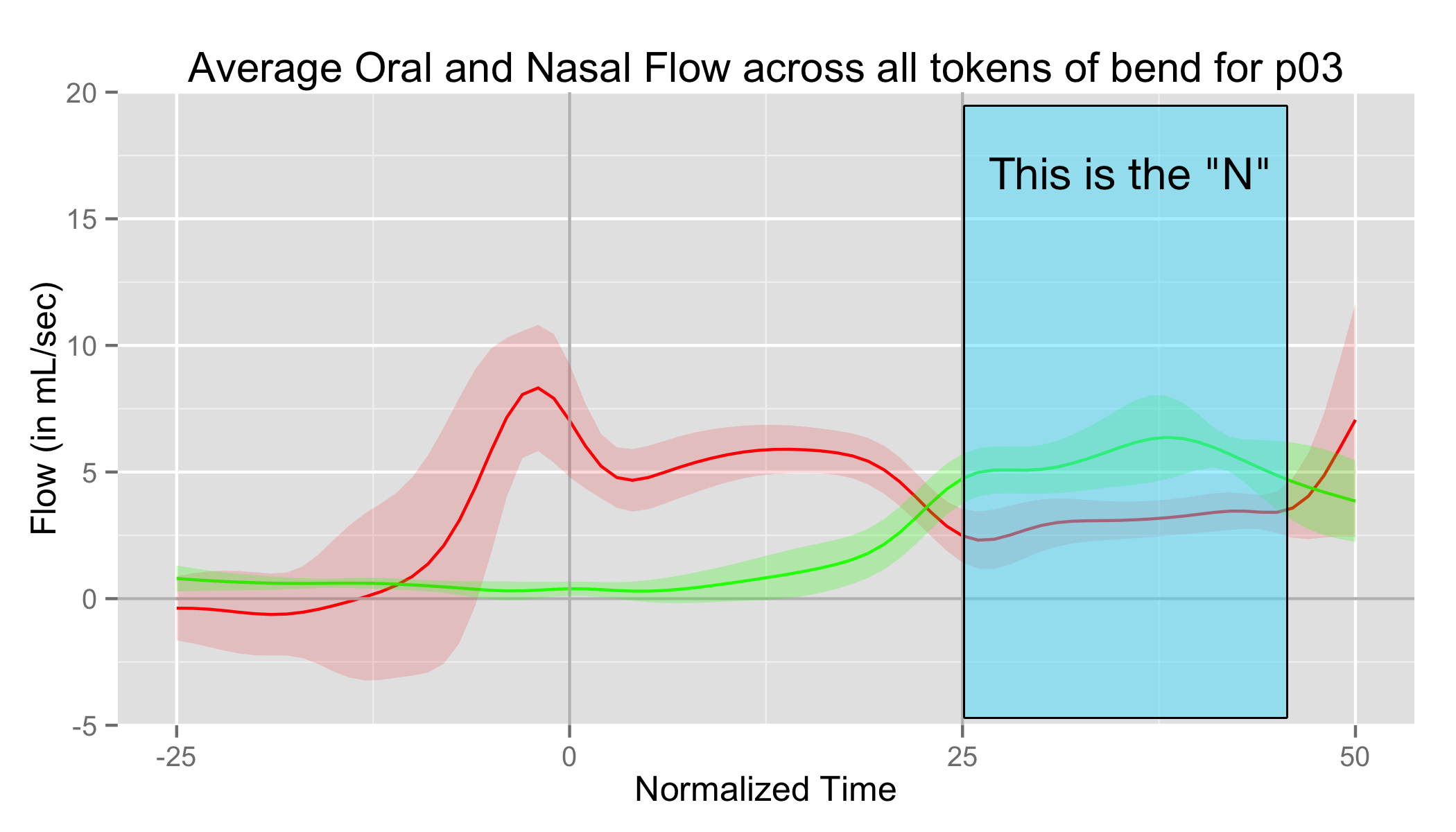

Let’s look at the airflow!

Electromagnetic Articulography (EMA)

• Electromagnetic pulses around the head are picked up by tiny sensors

• Measures the position of sensors in real time, very precisely

  • Accurate to 0.1mm, at up to 1250 measurements per second

• We’re using a Carstens AG501 here at Michigan

EMA Data

Electromagnetic Articulography (EMA)

• Pros:
  • Gives us precise position information
  • Gives us precise time information
  • Possible to study two people at once
  • No noise (in data or from machines)
• Cons:
  • Only gives us individual points (rather than the whole tongue)
  • Very time-intensive to collect and label
  • Sensitive to magnetic fields
  • Very expensive machines
  • Starts with “Now I’ll glue this to your tongue…”

Articulatory Measurements are helpful

• They let us measure what individual articulators are doing

• They give precise information rather than noisy signals

• They provide a “second opinion” for acoustic data

• … but they still don’t let us see what’s happening

Imaging Tools

Trans-Nasal Laryngoscopy

• Pass a camera through the nose which can look down onto the vocal folds and pharynx

• Use a strobe light to “slow down” the vocal fold motion

Content Warning: Things are about to get weird.

Trans-Nasal Laryngoscopy

• Pros:
  • Inexpensive
  • Full color video
  • High Framerates
• Cons:
  • Only useful for the larynx and pharynx
  • Requires a doctor to be present
  • “OK, now we’ll stick this camera up your nose”

X-Ray Imaging

• Pass radiation through the participant onto video film

Video Source

X-Ray Imaging

• Pros:
  • Low noise
  • High Framerate
  • Available 30 years ago
• Cons:
  • Flesh doesn’t show up well
  • Substantially irradiates your participants’ heads

Ultrasound

• Pulse high-frequency sound waves into the body

• Measure the patterns in which they return to image internal structure

Ultrasound

From University of Michigan Phonetics Lab

Ultrasound

• Pros:
  • Poses no risk to participant
  • Can be done in any office/setting by linguists
  • Provides the entire tongue
  • Silent in audible frequencies
• Cons:
  • Only shows the tongue
  • One Dimensional**
  • Can’t visualize the roof of the mouth or other articulators
  • Very, very noisy data

Magnetic Resonance Imaging (MRI)

• Strong magnetic fields can be made to cause hydrogen atoms to emit very faint radio signals

• These radio signals, with clever pulsing of the fields, can map the location of water in the body

• We look for the water corresponding to the areas we’re mapping

Video Source —

MRI

• Pros:
  • Can visualize any structure
  • Can visualize any angle
  • Non-invasive
  • Capable of very fine details
• Cons:
  • Requires access to an MRI machine
  • Very expensive
  • Will pull any magnetic metals in you out of you
  • Very loud
  • Very slow

There’s no free lunch

• No perfect balance of image quality, speed, noise, and participant suffering

Tools for studying perception

• We need methods for understanding how humans hear spoken language, too!

Modifying the Signal

• Change the signal and see how humans respond to it

Remember that vowel nasality we were talking about earlier?

• Can we use that to tell “bad” and “ban” apart without hearing the last consonant?

Sine Wave Speech

Let’s listen to some sounds

This is called “Sine wave speech”, and it’s really awesome.

• Processing sound in this way tells us what humans are actually listening for in speech

Modifying the Signal

• Pros:
  • Can visualize any structure
  • Can visualize any angle
  • Non-invasive
  • Capable of very fine details
• Cons:
  • Requires access to an MRI machine
  • Very expensive
  • Will pull any magnetic metals in you out of you
  • Very loud
  • Very slow

Measuring Speech Perception

Response-based measures

• Reaction time

  • Measures cognitive load, processing time

• Accuracy

  • Measures absolute perception

Response-based measures

• Pros:
  • Easy to collect
  • Easy to interpret
  • Gets at the core of linguistic understanding
• Cons:
  • RT requires specialized equipment and software
  • Doesn’t give very fine-grained information
  • Accuracy is all-or-nothing
  • Many things can affect reaction time besides speech perception

Eyetracking

• Let participants respond by looking at pictures

• Track the position and timing of their gaze

• Humans can look more quickly and accurately than they can physically press buttons

From University of Michigan Phonetics Lab

From University of Michigan Phonetics Lab

Eyetracking

• Pros:
  • Very intuitive for participants
  • Captures decisions with fine temporal detail
  • Captures aspects of the decision-making process that accuracy can miss
  • Can measure cognitive load more directly**
• Cons:
  • Requires very expensive ($40,000) equipment
  • Analysis is much more difficult
  • Words and sounds tested need to be “imageable”
  • People still vary in the time course of perception

… and other tools

• EEG measures localized brain activity

• fMRI measures and localizes brain activity more precisely

• Transcranial Magnetic Stimulation can temporarily disable parts of the brain

• … and most other psychological measures can be applied to speech

These tools make perception measurable and studyable

• … way beyond “I think he said ‘bend’”

These are the tools that Phoneticians can use

• To measure the sounds of speech

• To measure individual articulators

• To image inside the head

• … and to understand how we’re hearing other people talk

For now, you’ll stick to the IPA and careful listening

• But when you fall in love with speech, come find us

• The best part about phoneticians is that we love sharing our toys

Thank you!

Questions?
