Acoustics for Speech

Will Styler - LIGN 6

“Noise”

/nɔɪz/

… but that’s not what speech actually is

Speech is acoustic

• It’s all sound

• We’re using speech gestures to produce an acoustic signal

• Gestures without sound are unhelpful

• Communication works fine on the phone

Today’s Plan

• What is sound?

• What are the important properties of sound?

• How can we visualize them?

Yay! Acoustics!!

Acoustics

The study of waves

What is Sound?

Sound is compression and rarefaction in a medium

• Sound needs something to travel in (like air or water)

(Yes, your childhood is a lie)

Thinking of sound as waves is helpful

• How do speakers work?

• Why does clapping cause a sound, but waving your hand through the air doesn’t?

• Why are gunshots loud?

We’re good at hearing sound

• … but we need to visualize it

Visualizing Sound

• Waveforms

• Spectra

• Spectrograms

Waveform

A horizontal cut through the wave showing the peaks and troughs over time

• The height/strength of the wave is called its “amplitude”

Let’s look at the sounds in this room right now

Waveforms are well and good

• … and you can tell a lot from a waveform

… but we’ll want better information to process speech

Frequency

The speed with which a wave oscillates

• Measured in Hertz (Hz), Cycles per second

Sound W - 100 Hz - Waveform

200Hz - Waveform

Sound T - 500 Hz - Waveform

Sound F - 1000 Hz - Waveform

Frequency is important

• Different phenomena produce sounds at different frequencies

• Most things produce sounds with a mix of different frequencies, each at different amplitudes

• Speech has many components at different frequencies

Voice Pitch

• Changing the “fundamental frequency” (f0) of your voice changes the perceived “pitch” of your voice

• Higher frequency of laryngeal vibration == “higher pitch”

• Intonation is all about this fundamental frequency!

How can we visualize the frequencies which make up a more complex sound?

Spectral Slice

Using a Mathematical Process called a Fourier Transform which breaks a signal down into its component frequencies at a certain time

• This creates a “spectral slice” or “FFT” (‘Fast Fourier Transform’) or “Power Spectrum”

FFT from the middle of “Noise”

Fourier Transforms show us the component frequencies

• This is much better information for analyzing speech

• So, we’re going to use them all the time here

Let’s walk through this process in more detail

Sound W - 100 Hz - Waveform

Sound W - 100 Hz - Spectrum

Sound T - 500 Hz - Waveform

Sound T - 500 Hz - Spectrum

Sound F - 1000 Hz - Waveform

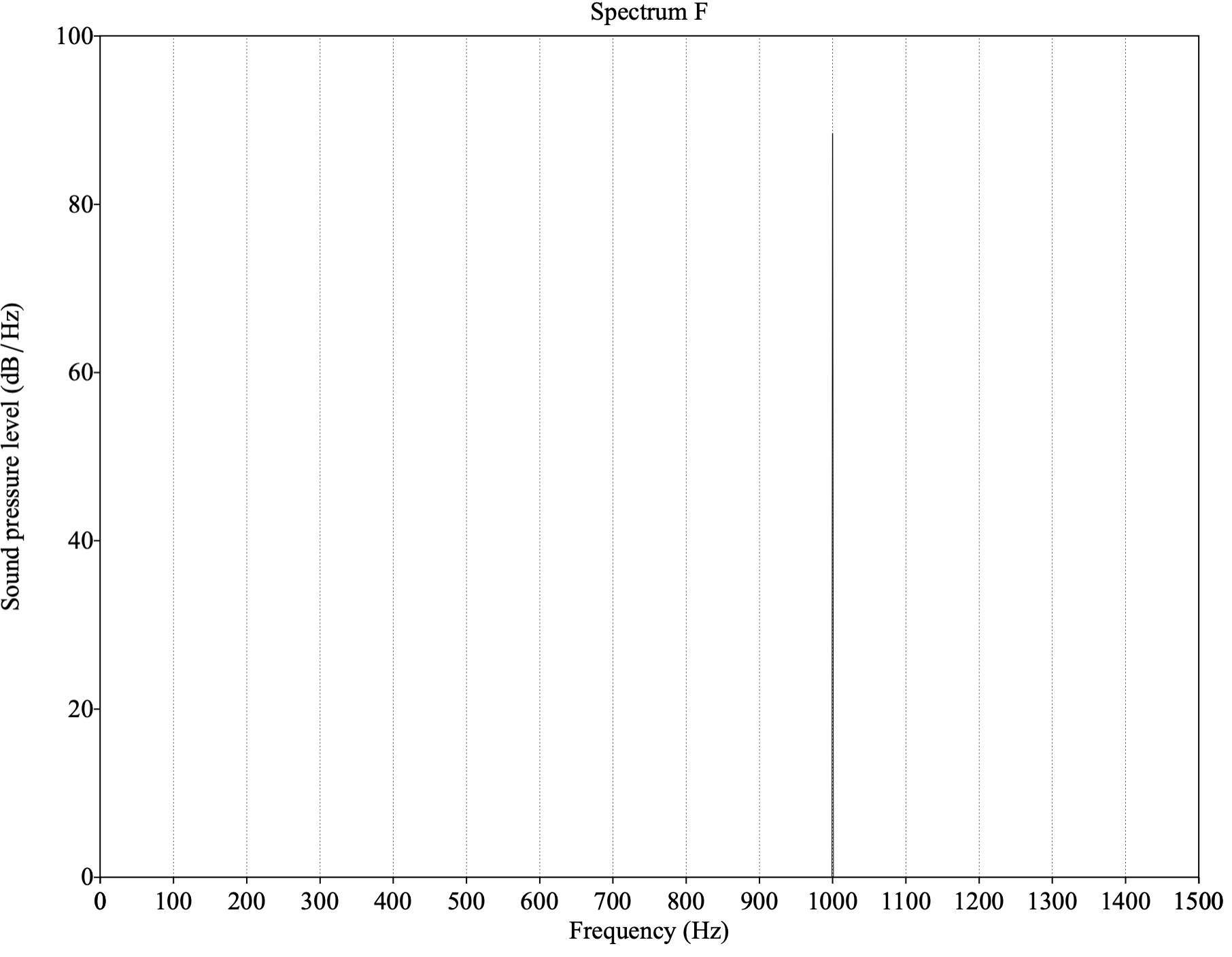

Sound F - 1000 Hz - Spectrum

What if we were to play these all at once?

Sound WTF - Waveform

Sound WTF - Spectrum

That’s much easier to cope with!

Let’s see how it works in the real world

… but what about time?

• Spectra only show one ‘moment’ of the signal

“Noise” - Waveform

“Noise” - Spectral Slice (FFT)

How can we bring time back into it?

Let’s try one approach

Spectrogram

Displays a series of FFTs, with peaks arrayed vertically, to show changes in frequency over time

“Noise” - Waveform

“Noise” - Spectral Slice (FFT)

“Noise” - Spectrogram

Sound WTF - Waveform

Sound WTF - Spectrum

Sound WTF - Spectrogram

Let’s have a bit of spectrogram fun

You can have fun on your own

• SpectrumView on iOS

• https://musiclab.chromeexperiments.com/Spectrogram/

• https://borismus.github.io/spectrogram/

• Praat (which you should already have installed)

We’re not the only people using Spectrograms

• Folks doing Sonar and Submarine Detection love them!

https://www.youtube.com/watch?v=as2QpSuGCc0

For next time

• Play with some sound visualization tools

• Get ready to visualize speech!
