Pitch, Loudness, and Localization

Will Styler - LIGN 113

Today’s Plan

• Perception of Frequency

  • Mel and Bark Scaling

• Perception of Loudness

  • Equal Loudness Contours

• Perception of Location

  • Vertical and Horizontal Localization

Perception of Frequency

Our perception of frequency is non-linear

• We now know a bunch of reasons!

Differences in critical frequency bands

Evolutionary Differences!

• We care primarily about ~80-4000Hz!

… but Hertz doesn’t capture this at all

• Hertz captures cycles per second

• … but not our perception of frequency!

Our perception of frequency is weird!

• We’ve already talked about auditory masking

  • Two sounds within the same ‘critical band’ seem like one sound

• We also percieve jumps in frequency non-linearly

Do we hear frequency in a linear and reliable way?

Is the jump in file A the same as in file B?

A.

B.

• Both of these are a 200Hz Jump!

Is the jump in file A the same as in file B?

A.

B.

• Both of these are a 100Hz Jump

So, our perception of frequency isn’t Hertz-like

• We want a perceptual scale for hearing!

Perceptual scales

• Mel scaling

• Bark scaling

Mel Scale

• Maps numerical pitch measures to human perceptions of changes in pitch

• People will tell you that a sound’s pitch is ‘half as high’ at x/2 mels relative to x mels

• Mel is the dominant perceptual frequency scale in use

  • It underlies Mel-Frequency Cepstral Coefficients which are the dominant processing method in computational linguistics

Mel Scale

Mel Formula

• Mel(f) = 1125 * ln(1+f/700)

  • f = Frequency in Hertz
  • This is a natural log
  • There are multiple formulae!

Bark Scale

• The same basic idea, but using the critical bands themselves!

• Each ‘band’ in bark is centered around the psychoacoustic critical bands

Bark Scale

Bark Formula

• Bark(f)=13*arctan(0.00076*f)+3.5*arctan((f/(7500))*(f/(7500)))

  • f = Frequency in Hertz
  • Again, there are other formulae!

Bark vs. Mel vs. Equivalent Rectangular Bandwidth

Which should you use?

• Doesn’t really matter!

• Linguists tend to use Bark

  • But you’ll see Mel too!

• The important part is knowing that we don’t hear Hertz linearly!

  • You know what else is non-linear?

Amplitude Perception

The auditory system is tuned to amplify some frequencies!

We’ve already talked about wanting different units for amplitude

• Perceived amplitude is not linear with pressure

  • Hence using dB, rather than Pascal!

… and let’s not forget the relationship between frequency and amplitude

• We don’t hear equivalent loudness for equivalent amplitudes at different frequencies

This is the basis of dB HL

dB HL sets the minimum perceptible amplitude as zero!

• Regardless of frequency!

So, our perception of the basics of sound is… not awesome

• Duration

  • We won’t talk about that, but it’s cool

• Amplitude

  • Heavily convolved with frequency, and logarithmic!

• Frequency (Period, Wavelength)

  • Oof.

• Phase

  • That’s a nope.

… but that’s OK!

• Our perception is shaped by our evolution!

• The most important ranges for speech and survival are amplified

• None of our perceptions of anything are accurate

We have nothing but our flawed perceptions to build a model of the world from

• Everything you’ve ever known is just a matrix of perceptual data

• You can’t prove anything you’ve ever experienced happened, just that you perceived that it did.

• We’re just isolated mindstates groping through an invisible world using our strange detectors

Wait, where did that come from?

• Which brings us to…

Sound localization?

We want to know where sound came from

• “Did that lion just roar from behind me or in front of me?”

• “Where is that bird tweeting from?”

• “Where did that spring just go?”

We need two kinds of localization

• All positions can be calculated based on vertical and horizontal knowledge

• So, we just need to figure out two dimensions!

Many animals can change the position of their ears

• Turns out that we still try, even though it doesn’t work anymore

• … but we can’t, so we need to figure out how to do…

Horizontal Localization

We use two sources of data for horizontal localization

• Both rely on binaural information

• Differences in timing between ears

• Differences in loudness between ears

Time-of-arrival differences

Interaural Time Differences

Interaural Amplitude differences

Think about a post in the water…

Interaural Level Differences

Both play a role

• Interaural time differences are used mostly in low frequencies

• Interaural amplitude differences are usable only in high frequencies

• The trade-off happens around 1 kHz

This is acquired

• Each time my hearing changed, I re-learned where sounds are!

• Primarily at higher frequencies

  • Take a second to ponder why…

Binaural effects can only give you horizontal cues

• Provided that your head is vertical

• How do we get vertical information?

Vertical Localization

For vertical information, we use the pinna

Different resonances imply different angles of incidence

• These are pinna-specific

  • You cannot localize sounds recorded with a fake pinna

• They also involve the resonances of the neck and shoulders

• Pinna cues are most important over 6,000 Hz

• Here’s a great paper on vertical localization

Localization is hard!

• We’re best at it directly in front of us

• We’re pretty bad at it behind us, and directly to our sides

The cone of confusion

• These have exactly the same ITD

There’s other information too!

• We can move our heads

• We can use information from the room

• We can use frequency decay over time to judge distance

• We can use the doppler effect to identify fast movement

• We can identify the source visually

Aside: Localization is hard to preserve

• We’re worse at localizing sound when wearing hearing protection

  • … especially when the pinnae are covered

• Modeling this is very, very complex

• Surround Sound systems cheat by actually playing sounds from different places

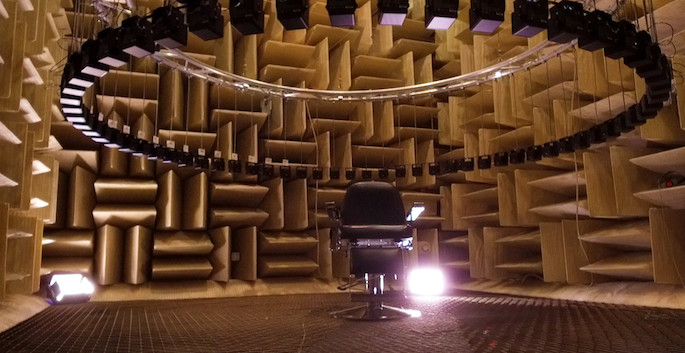

There’s a lot of research in Localization

[https://medschool.vanderbilt.edu/hearing-speech/research/](hearing/localization_array.jpg”>

Differences in basilar membrane response

<img class=“r-stretch” s

Source

Wrapping Up

• Our perceptions of frequency are deeply non-linear

• Our perceptions of amplitude are deeply non-linear

• Localization is a hard task

• Horizontal Localization uses differences in timing and loudness between ears

• Vertical localization relies on pinna cues

• This is super complicated

  • … and an area of major research!
